Ships from
Vancouver, Canada.
Free Shipping*
1 Year Warranty
We ship our bikes fully assembled with both wheels attached. Due to the size of the package, we are required to use LTL (Less Than Truckload) carriers. Your bike will be shipped either with Vitran Express or Day & Ross.
Our shipping rate is $49* as part of our online incentive. Local pickups from our Port Coquitlam, BC Headquarters is free of charge.
*If you live in a rural area or further out of the city where commercial truck is having difficulties to operate then we ask you to provide a business/commercial address for the delivery. Alternatively you have a option to pick up your bike in a shipping terminal close to your location.

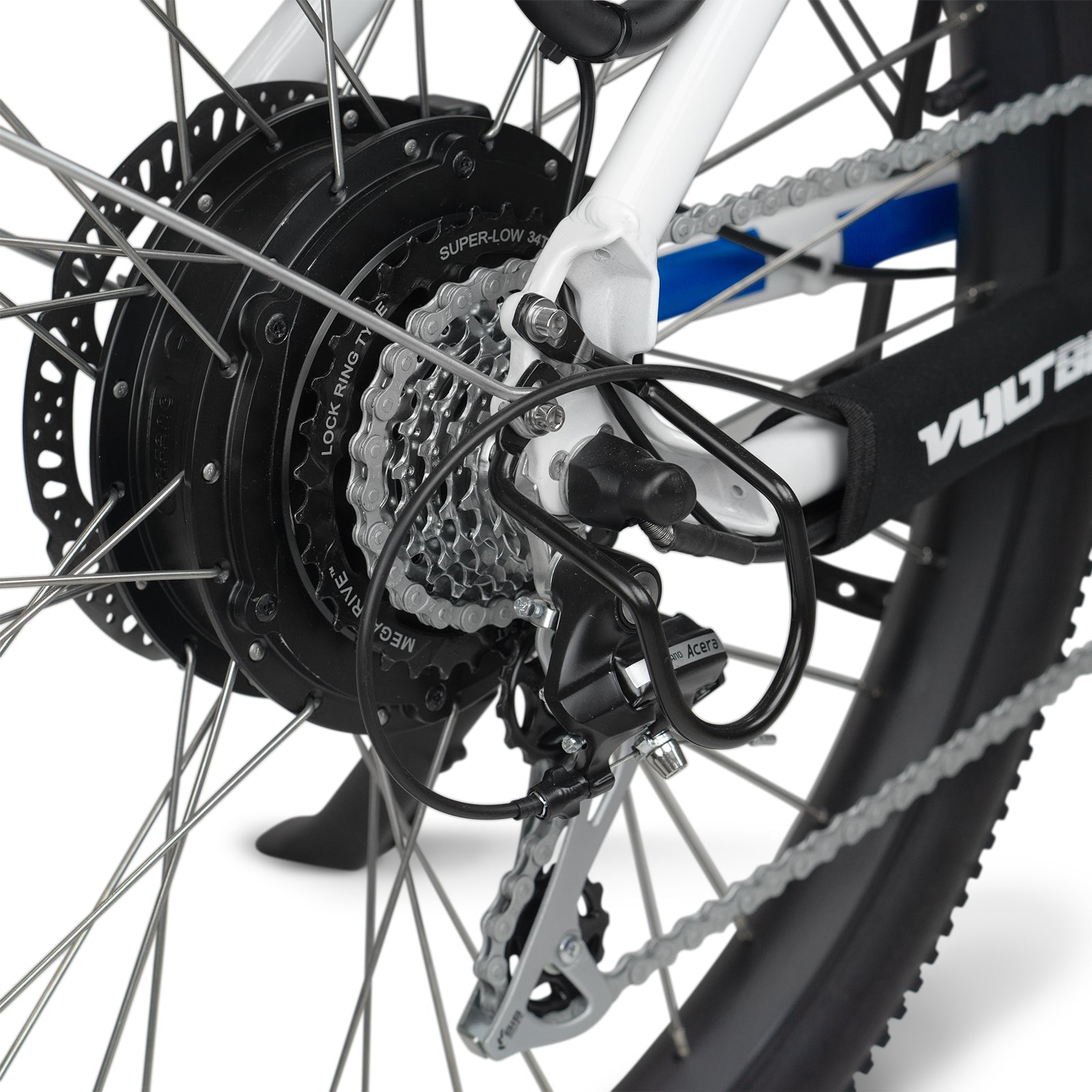

The Bravo is using a Bafang G07 series geared motor which provides 65 N.m. max torque and 500w rated power. The Bafang G07 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears. Read more about Bafang motors here.
32 km/h
top speed
The Bravo comes with a 48v 17.5Ah battery packed with Samsung Li-ion battery cells. The battery pack is assembled by Phylion which is one of the largest battery manufacturers for ebike batteries with facilities in China, Europe and India. These Samsung cells are preferred by almost all high-end e-bike manufacturers due to their superb cell balance technology.
60 - 80+ km
per charge

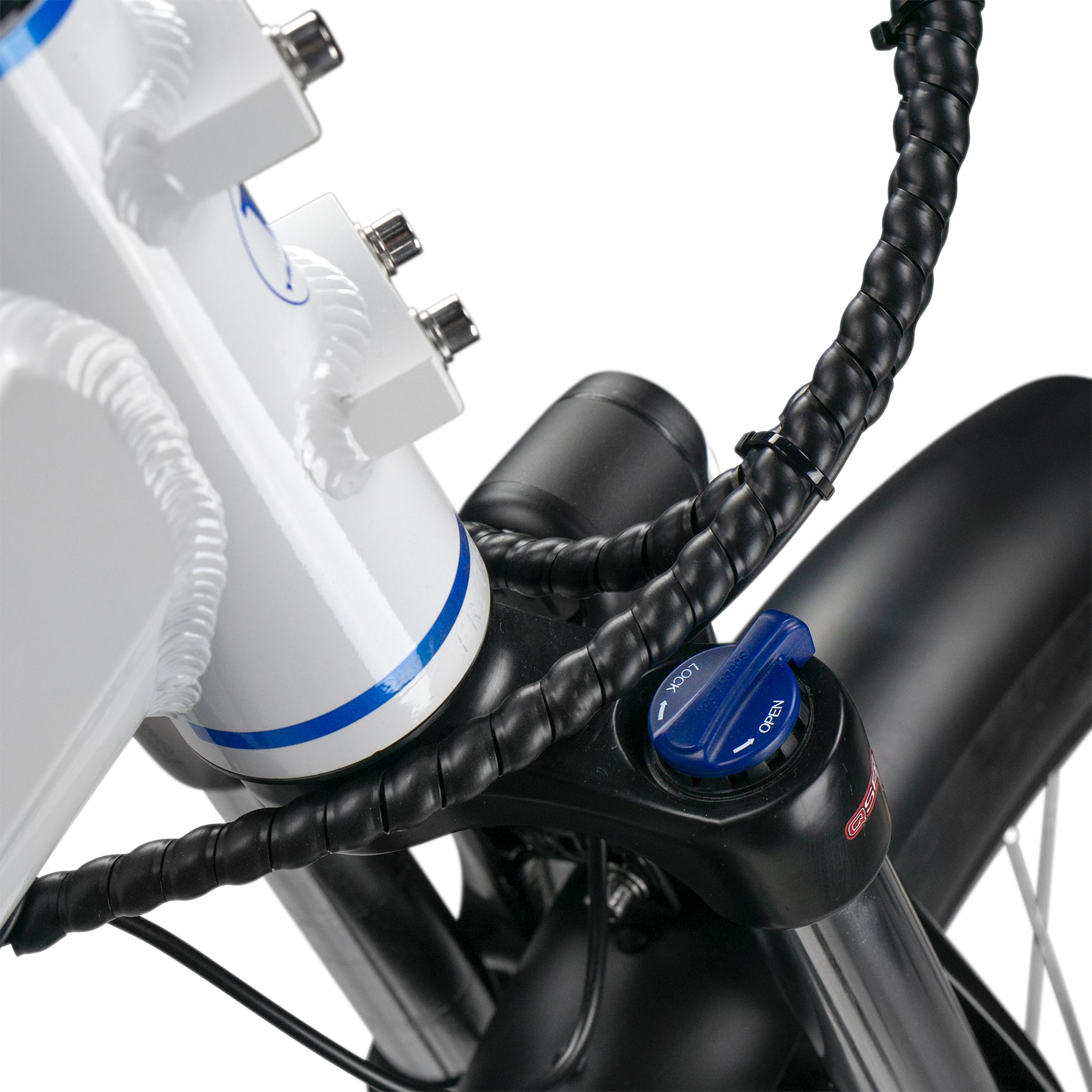

The Voltbike Bravo comes standard with Suntour XCT DS lockout suspension. Designed for quick release axles and bolt on axles. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weight is only 7lbs.

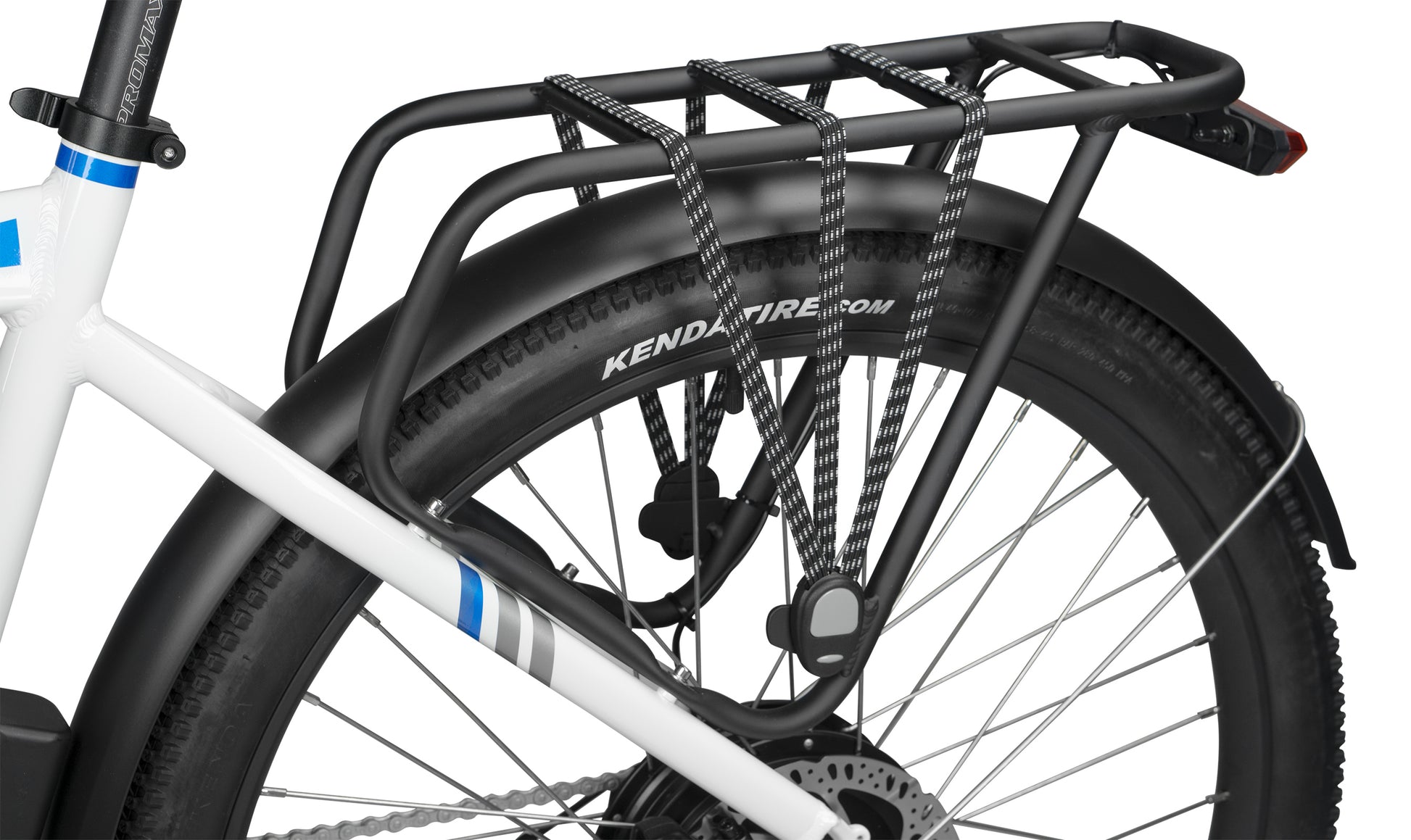

Standard for Bravo is an aluminum rear rack which can fit any load with ease up to 50lbs. Mounted directly on the rack is LED rear taillight with brake light functionality.

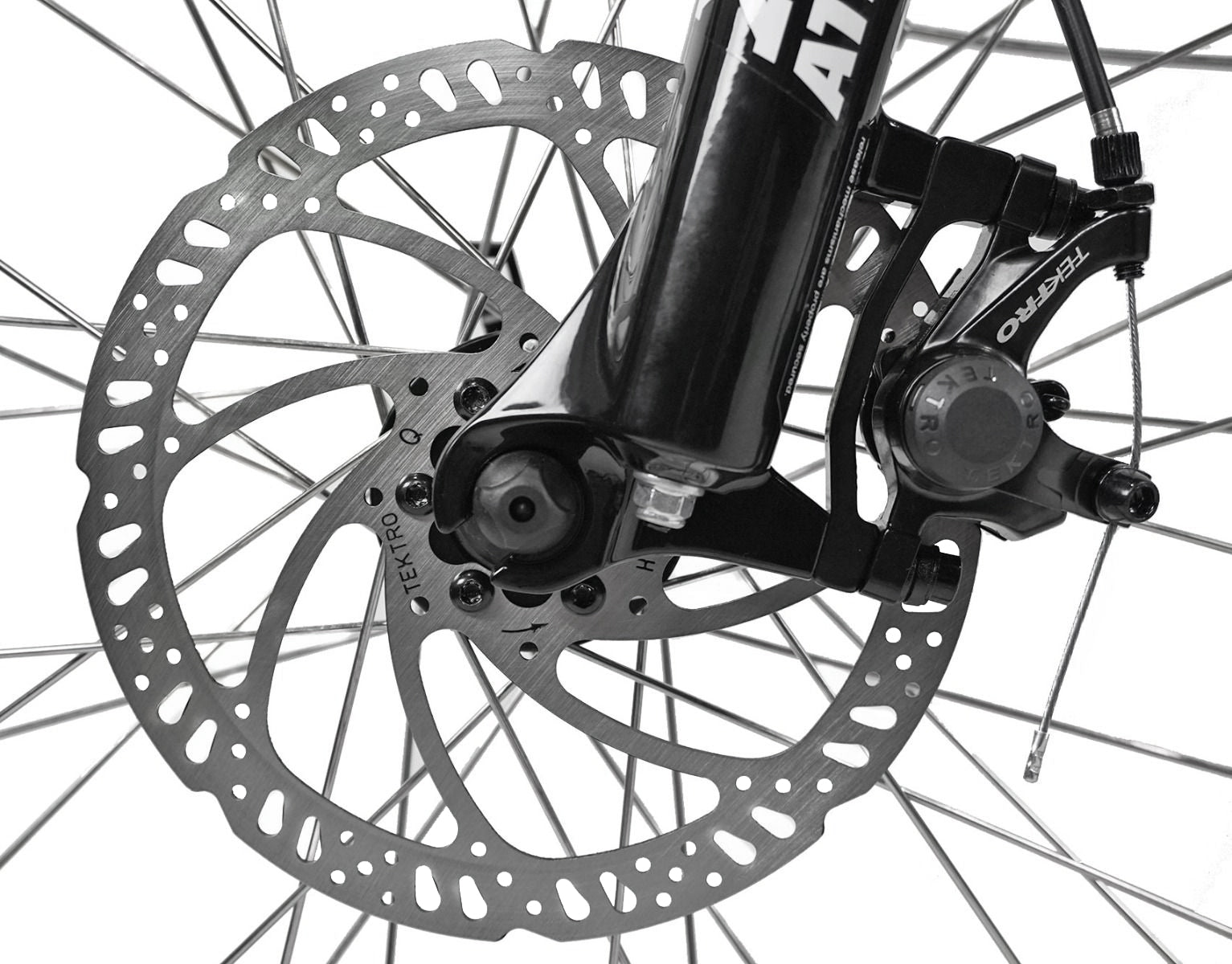

The Bravo is equipped with Tektro Auriga hydraulic front and rear disc brakes. Tektro Auriga comp disc brakes feature an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.
Large practical display located in the middle of the handlebar offers real time stats such as speed, pedal assist level, battery capacity, distance traveled and current load. You can also charge your cell phone through the built-in USB connector. New for the display is the lighting sensor which atomically activates your lights when it gets dark.

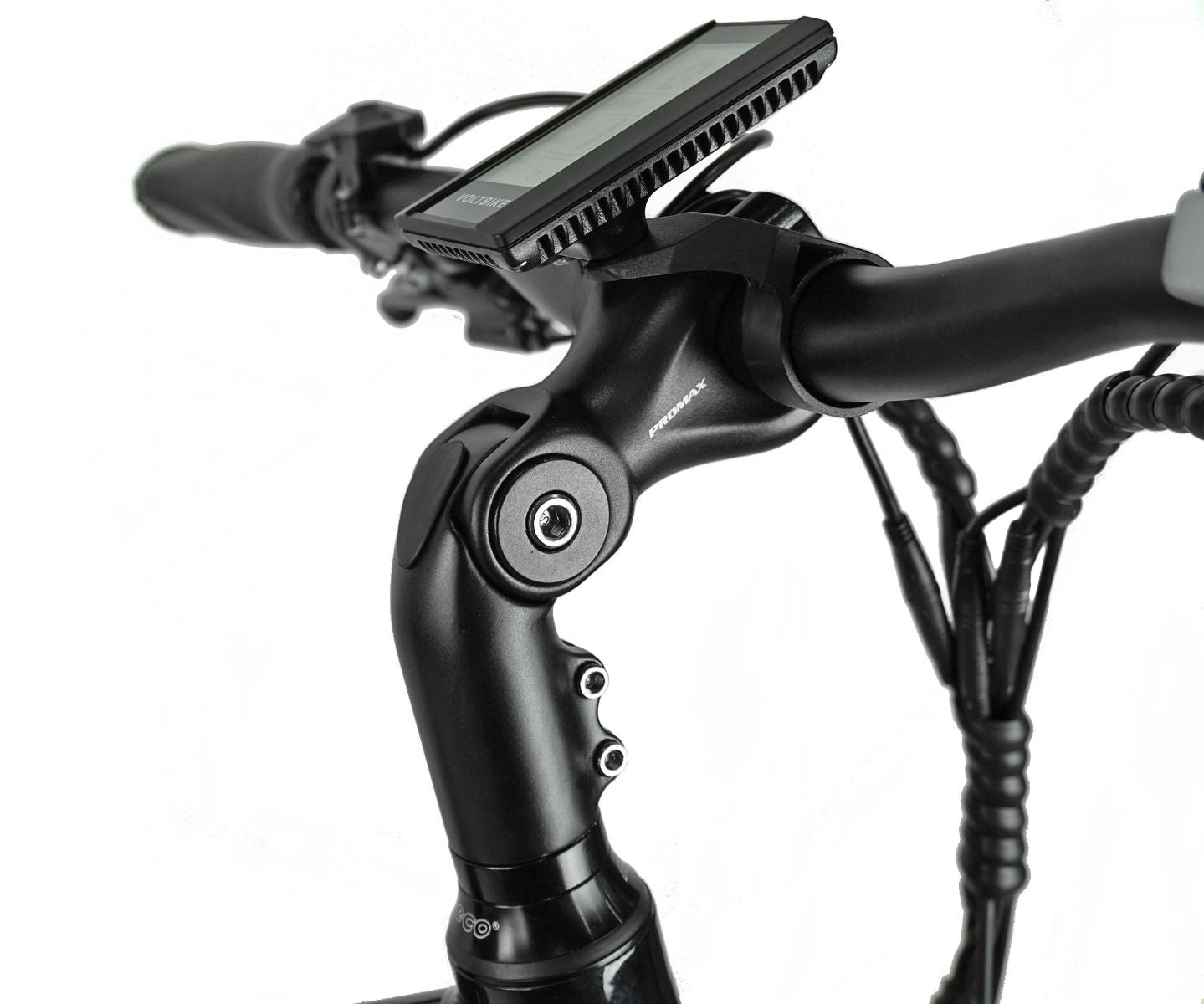

Adjust your bike as per your need. No matter what your style of riding, VoltBike has a stem with the fit, performance and style you're looking. VoltBike is using stem Promax MA-570 with adjustable angle 35° - 145° and 108mm extension.
Our redesigned cockpit includes large easy to read color LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.
The Bravo is equipped with a high lumen front LED light with a consistent, well-focused beam pattern. Rear LED light powered using the main battery pack. Features brake light functionality that is activated any time the brakes are applied. Reflective tire liner ensures you are visible from the side.
| SKU | BRVO |
|---|---|
| Frame Type | Step-Over |
| Motor Type | Wheel Hub |
| Battery Style | Clip-on |
| Weight | 63.000000 |
| Motor | 48v 500W Bafang G070 Hub Motor |
| Battery | 48V Li-ion 17.5Ah Samsung (840Wh) |
| Frame Size | 19" |
| Bottom Bracket | Neco 910, 23.5mm + 120mm + 23.5mm |
| Brakes | Hydraulic disc brakes front/rear Tektro Auriga HD-E500 |
| Brake Lever | Tektro with integrated bell |
| Chain | KMC Rust Buster |
| Crankset | Aluminum Alloy-6061 44T Crank, 170mm with Outer Guard |
| Derailleur Guard | Rear Metal Derailleur Guard |
| Fork | SR Suntour XCM |
| Freewheel / Casette | Sunrace M2 Freewheel Super-Low 7 Speed 13-34T |
| Handlebar | PROMAX ALLUMINUM ALLOY 31.8mm*22.2mm*680mm, 9 degree |
| Hubset | Alloy 6061 Electric Motor |
| Pedals | Wellgo LU-313 with reflectors |
| Rear Derailleur | Shimano Acera RD-410 7 speed direct rear derailler |
| Rims | 27.5 inch with 36 spokes |
| Seat Post | Promax SP-252 Aluminum 6061 Alloy, 30.4mm*350mm |
| Seat | Velo Plush VL-6142 |
| Shifter Type | Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed |
| Spokes | Rear 13G, Front 13G |
| Stem | PROMAX MODEL MA-596 with adjustable angle 35° - 145°. 105mm extension with bar bore 31.8mm. |
| Tires | Kenda 27.5" x 2.1" |
19"
32"
18"
24"
44" - 46"
34" - 40.5"
27.5" x 2.1"
46"
73"
Our bikes ship 95% assembled with everything you’ll need to get up and running, including:
