VOLTBIKE

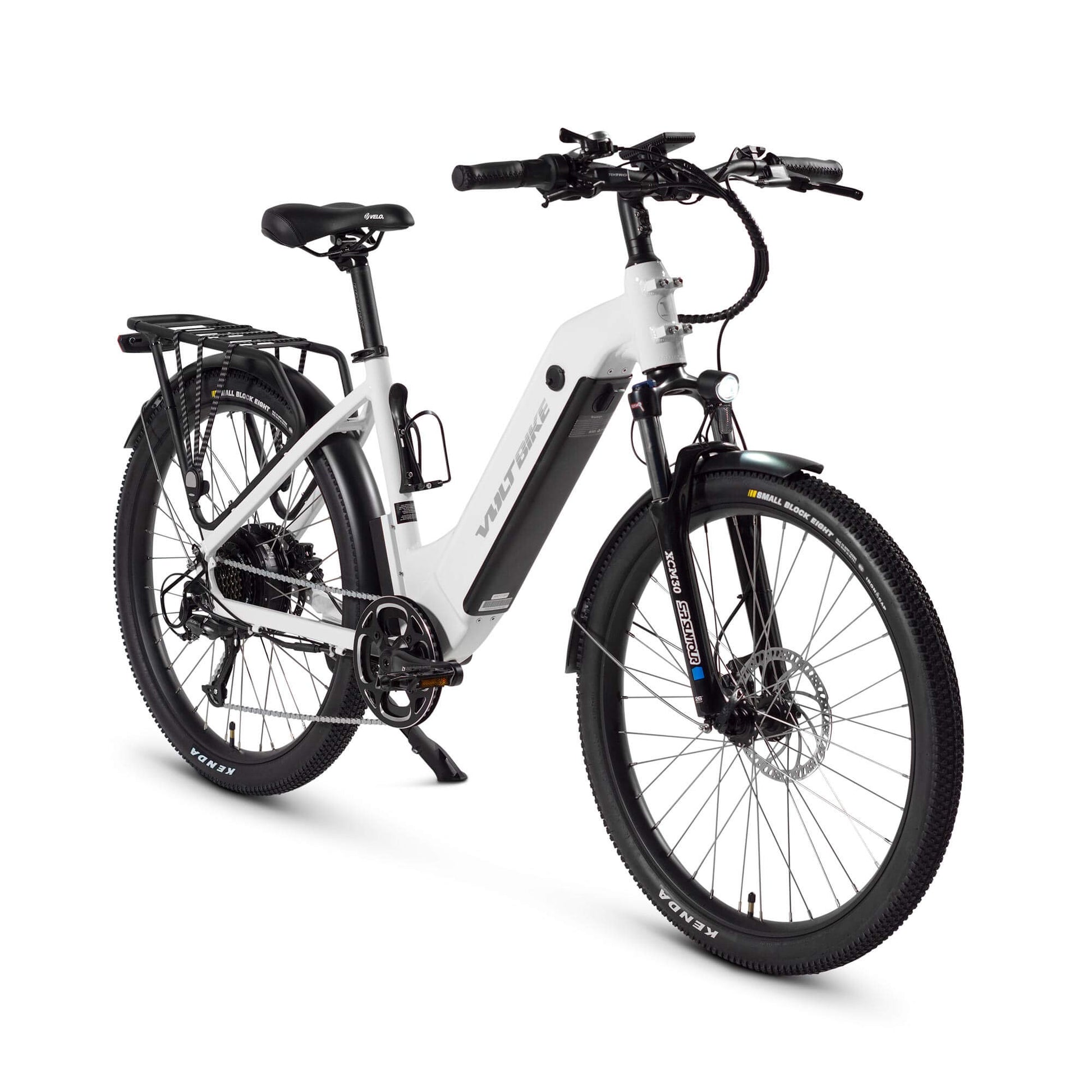

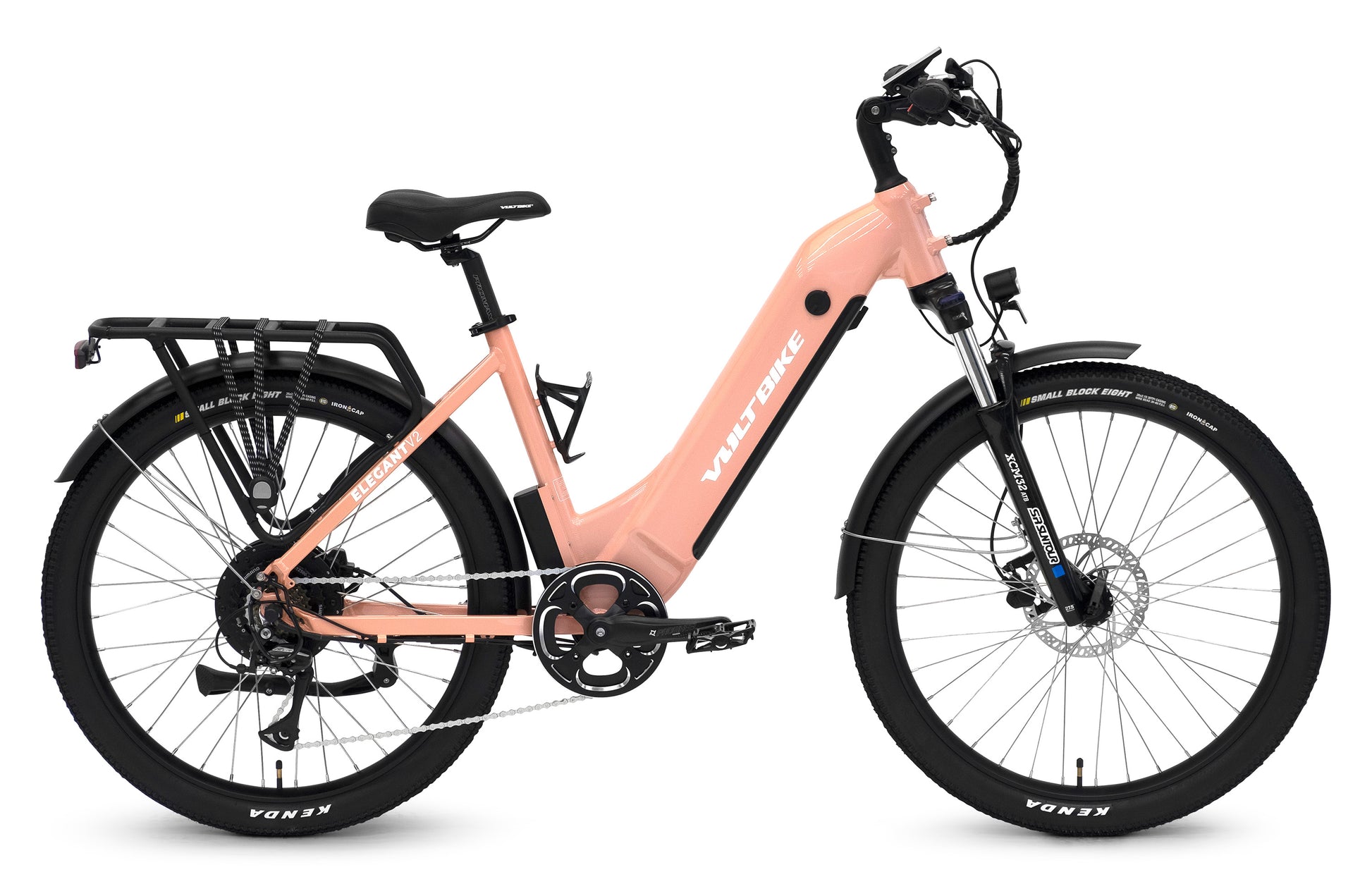

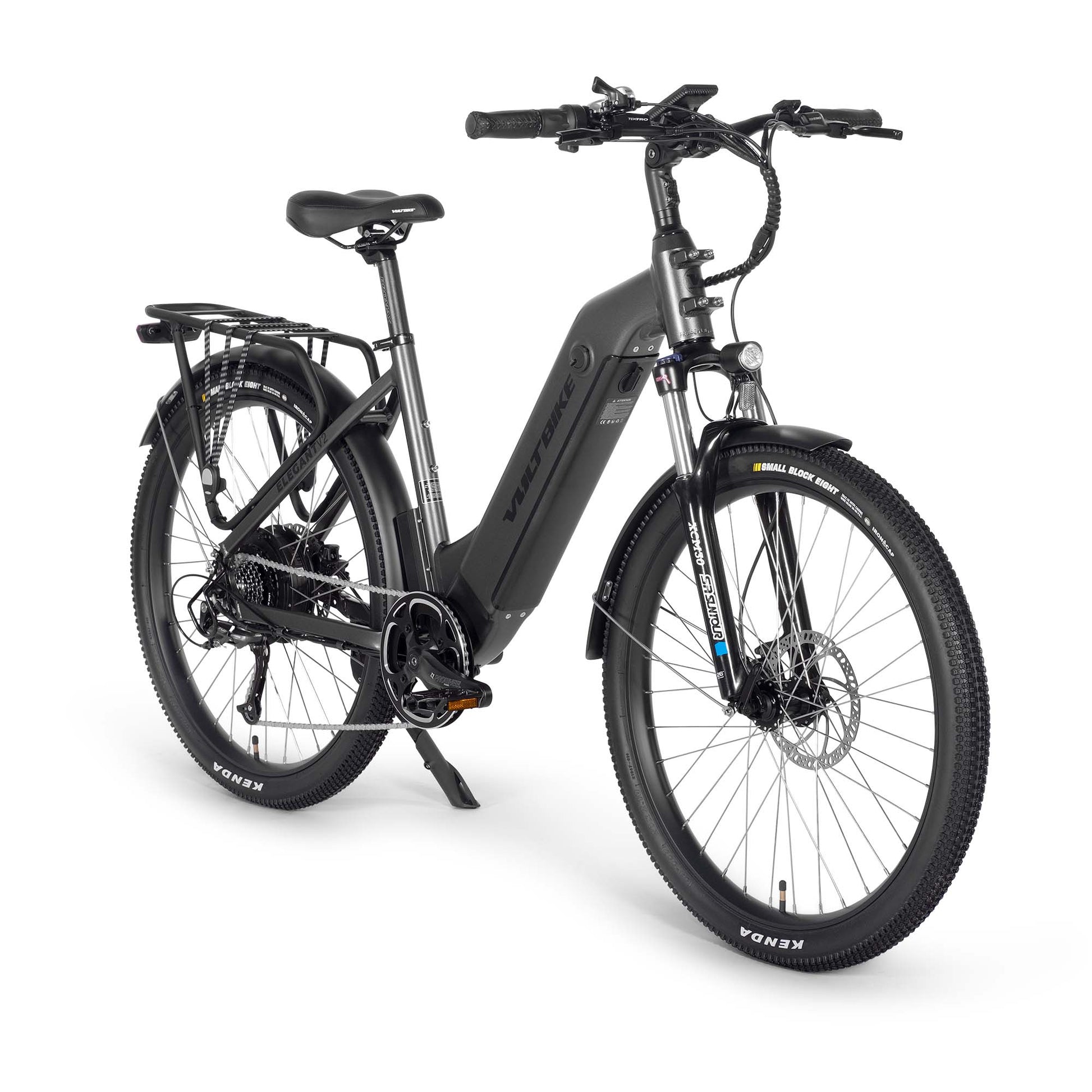

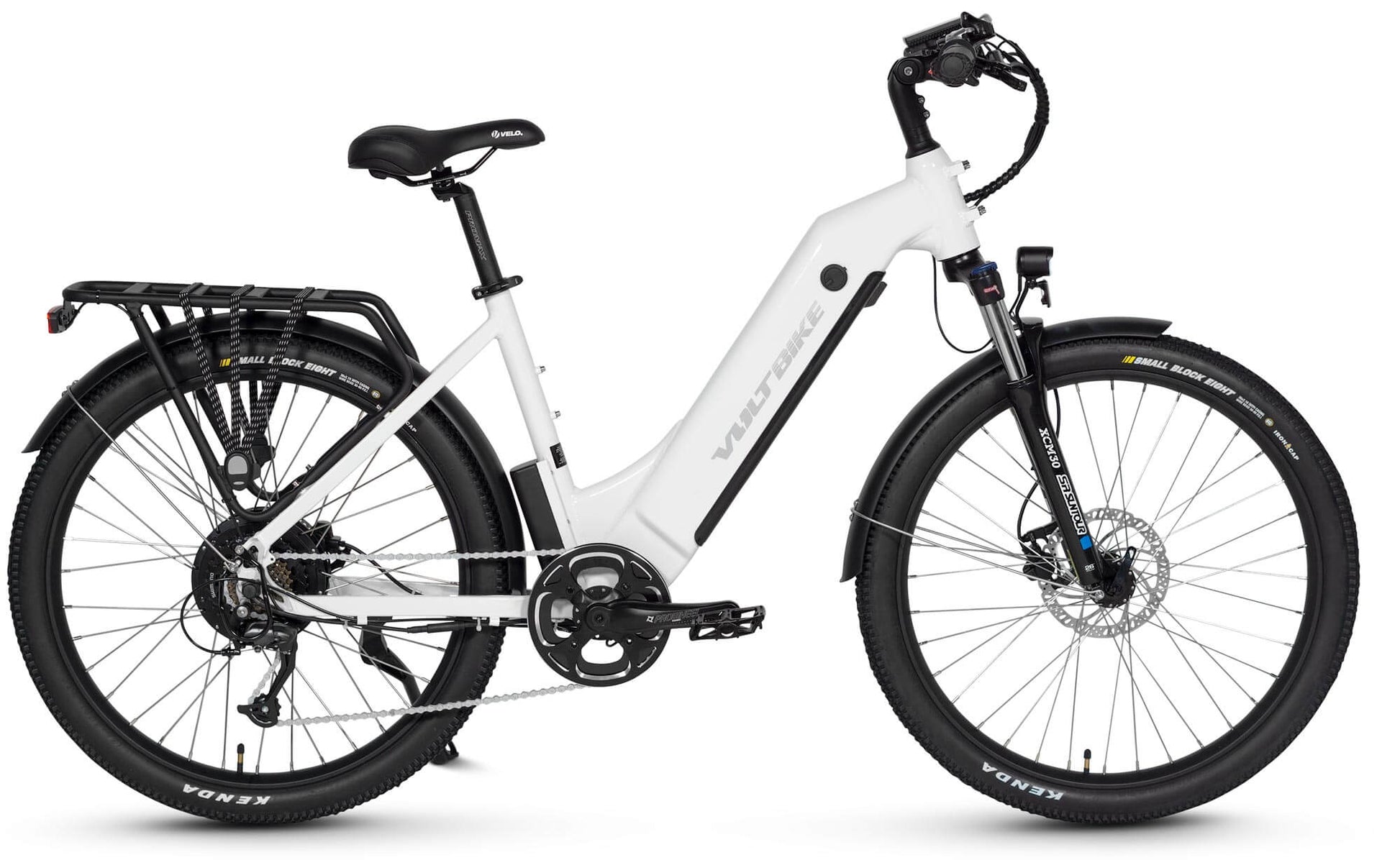

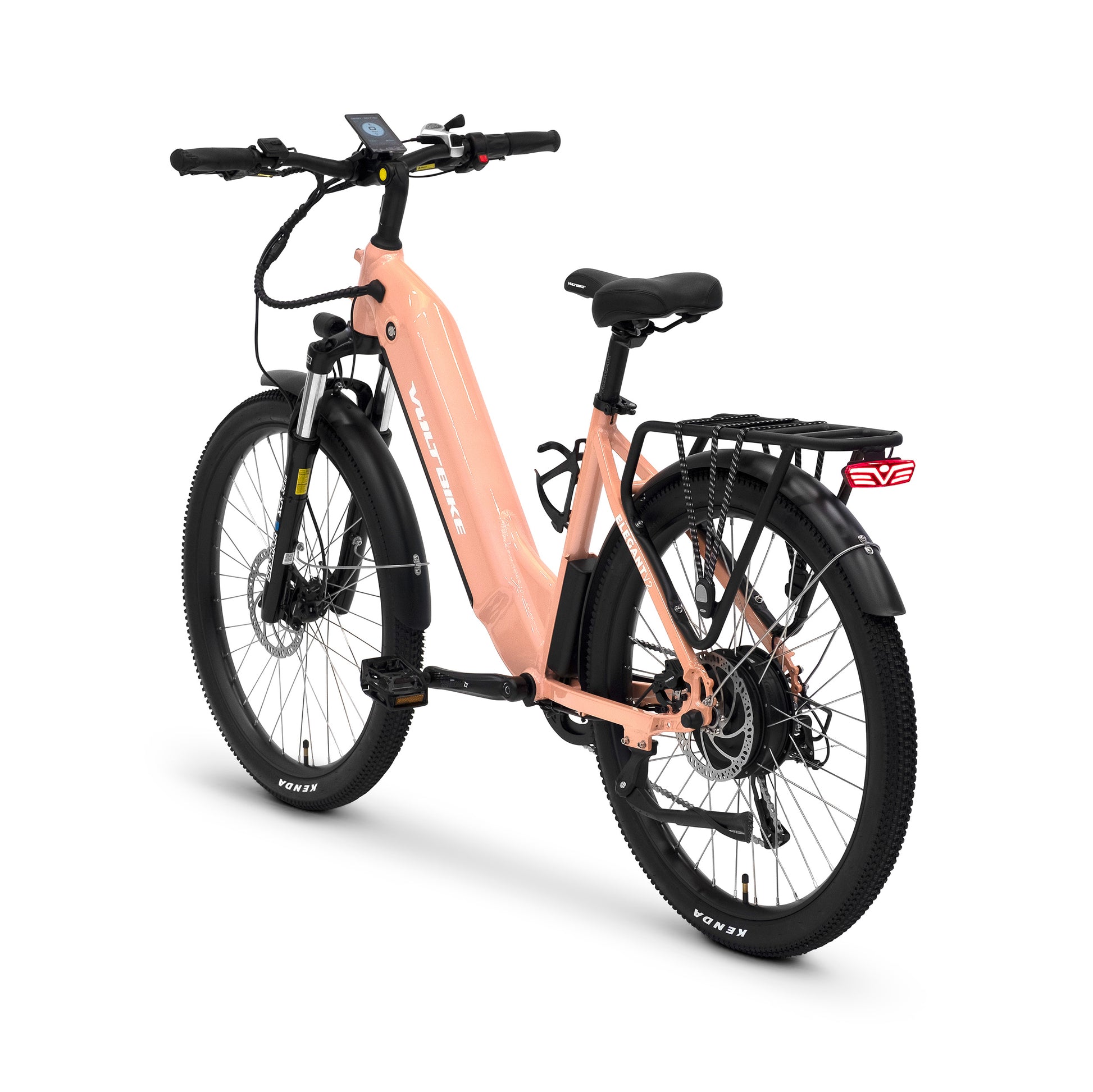

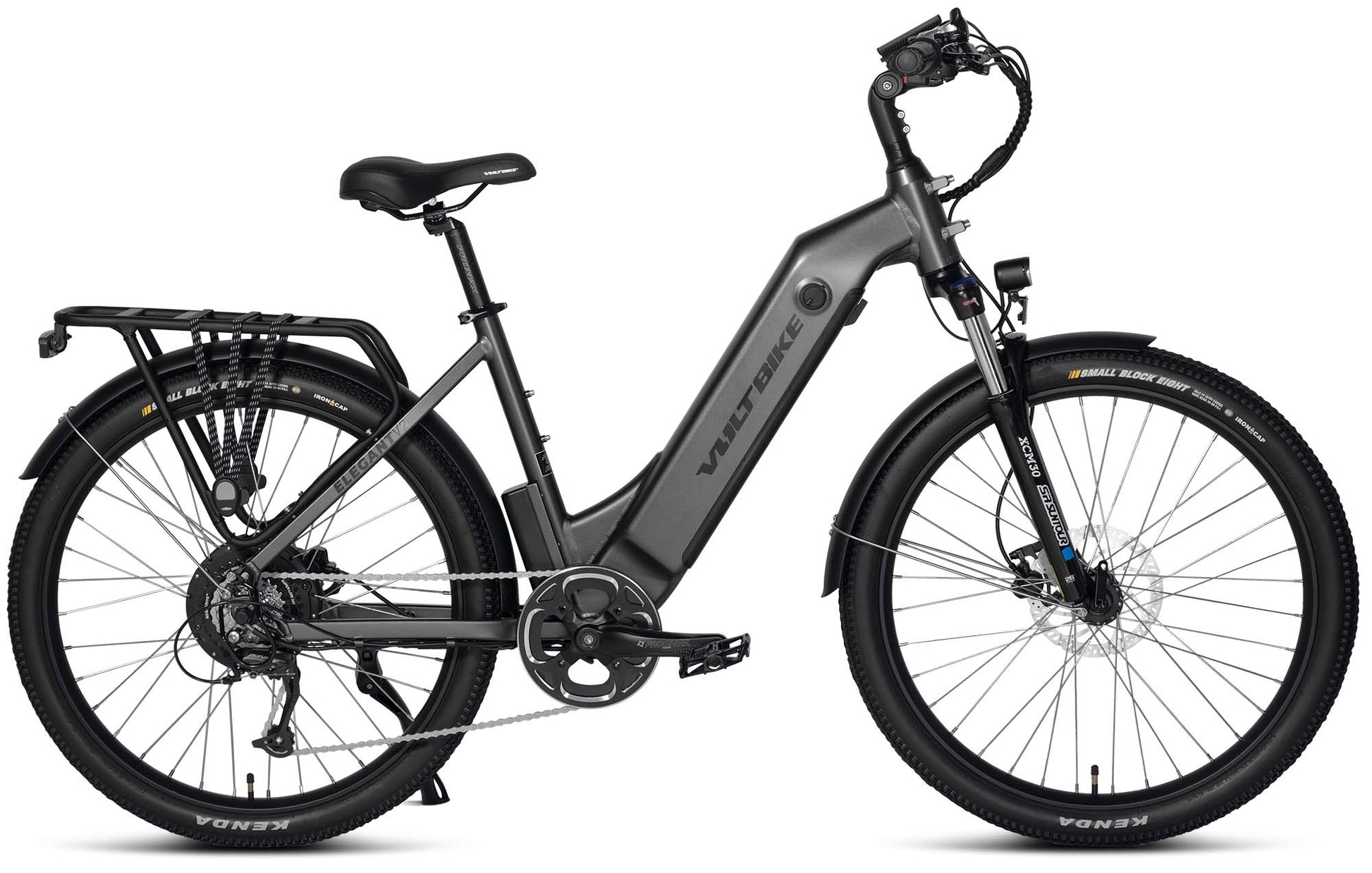

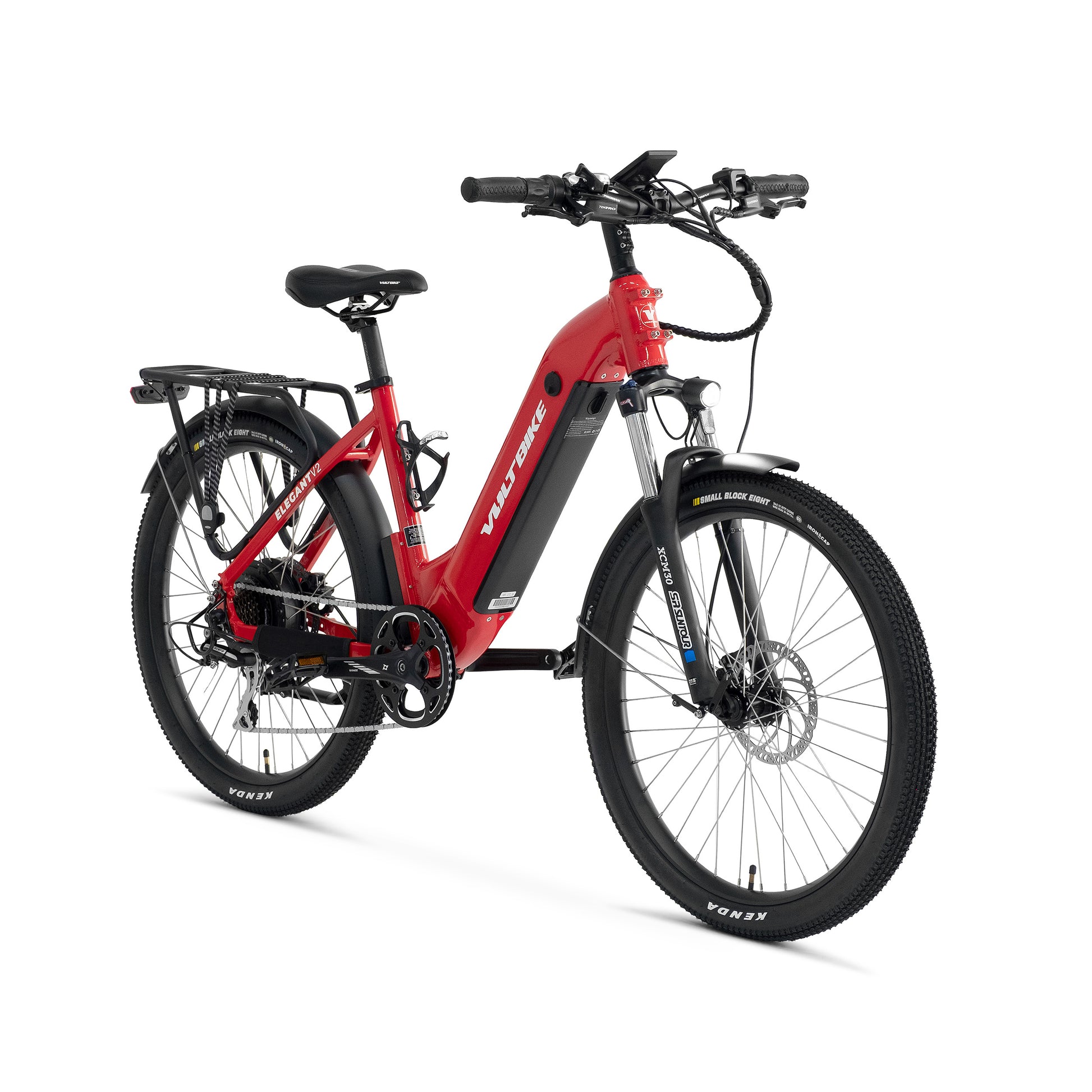

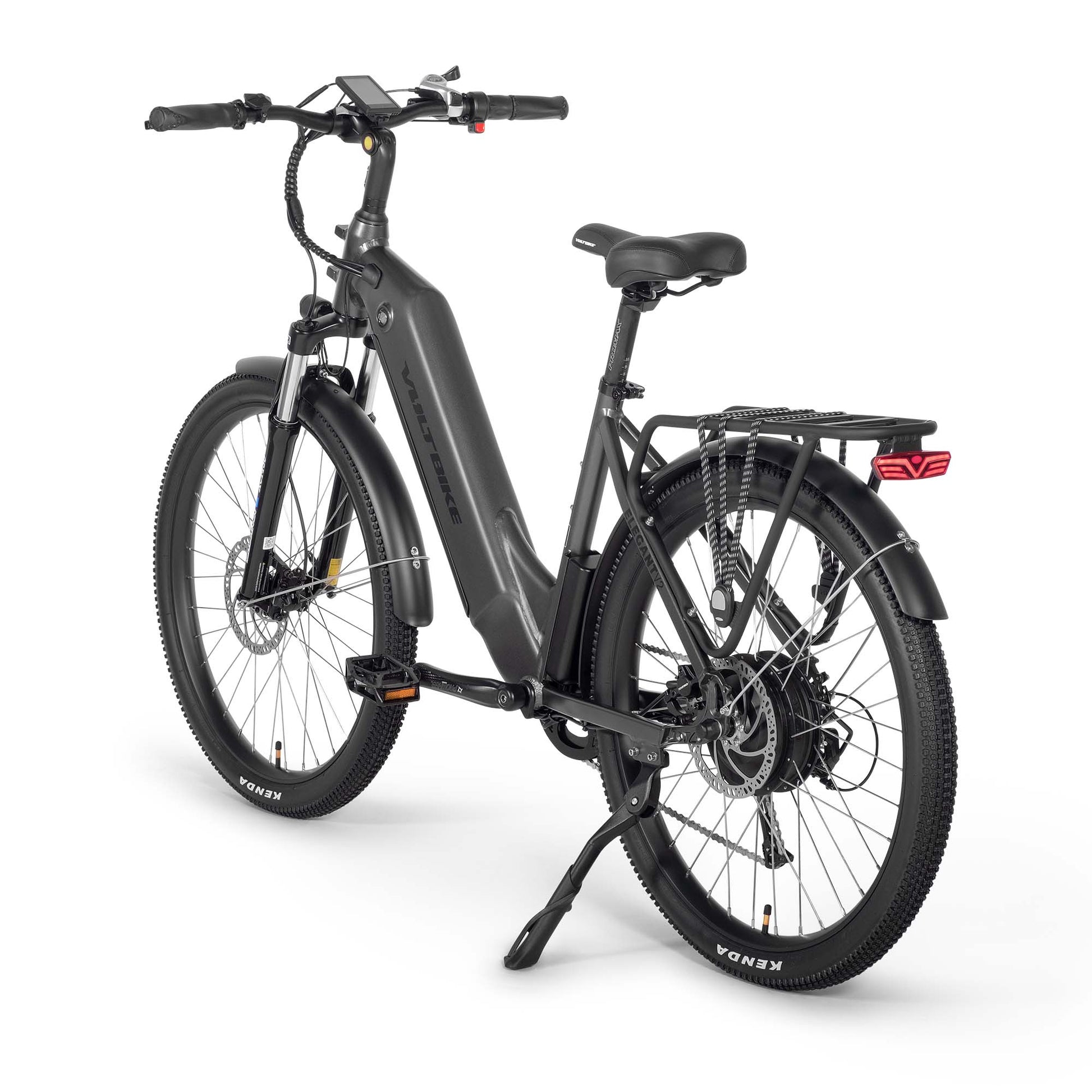

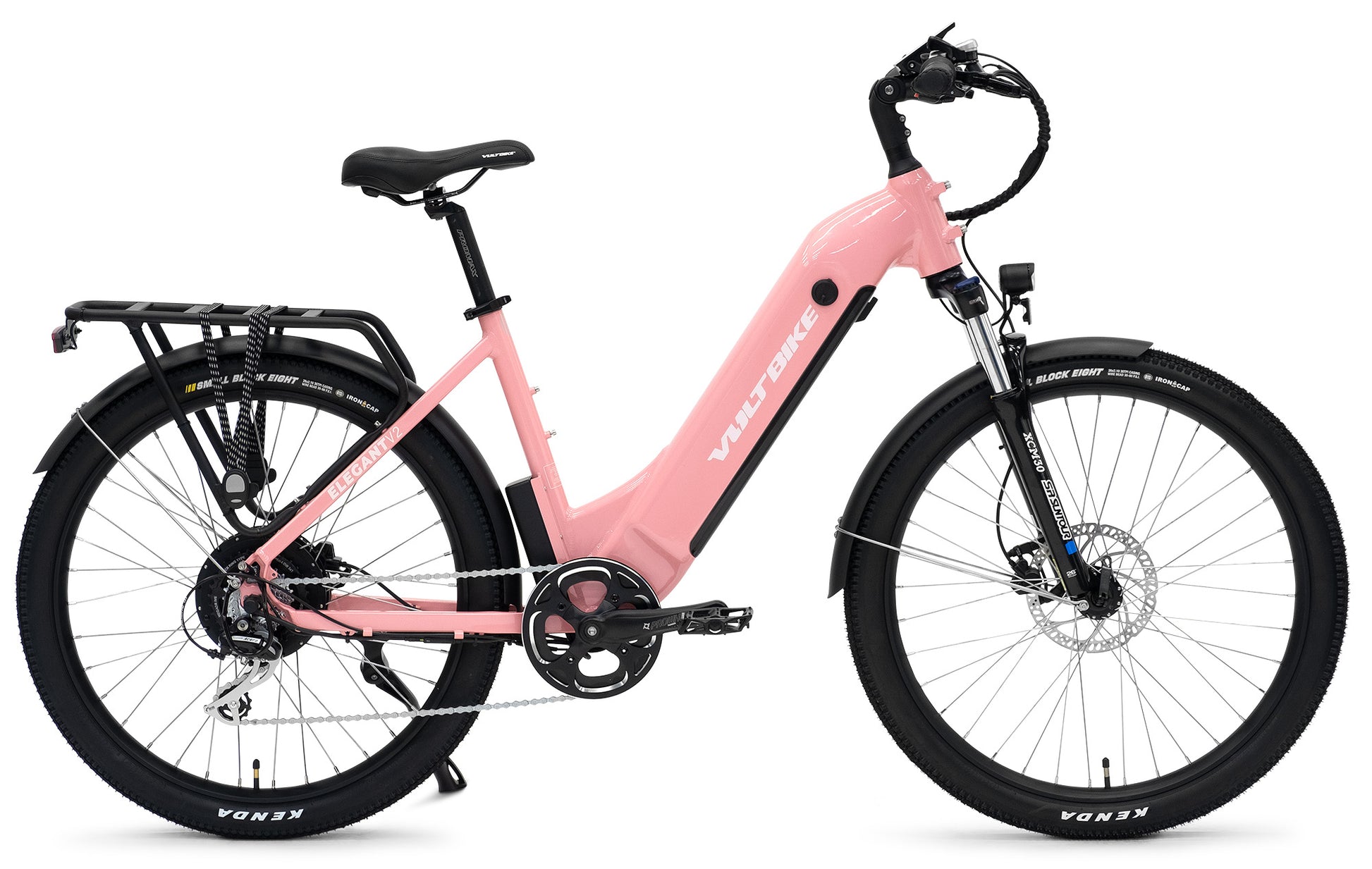

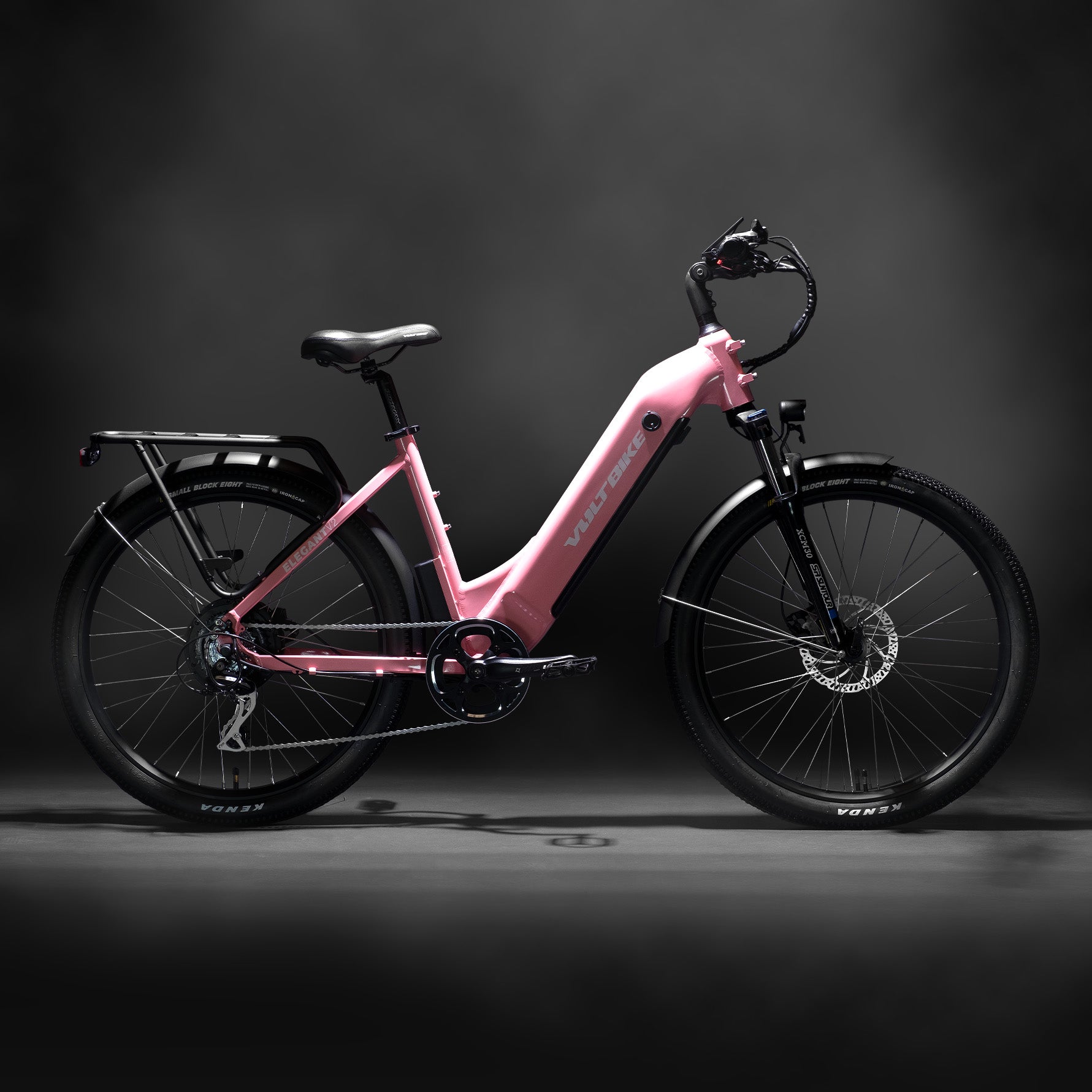

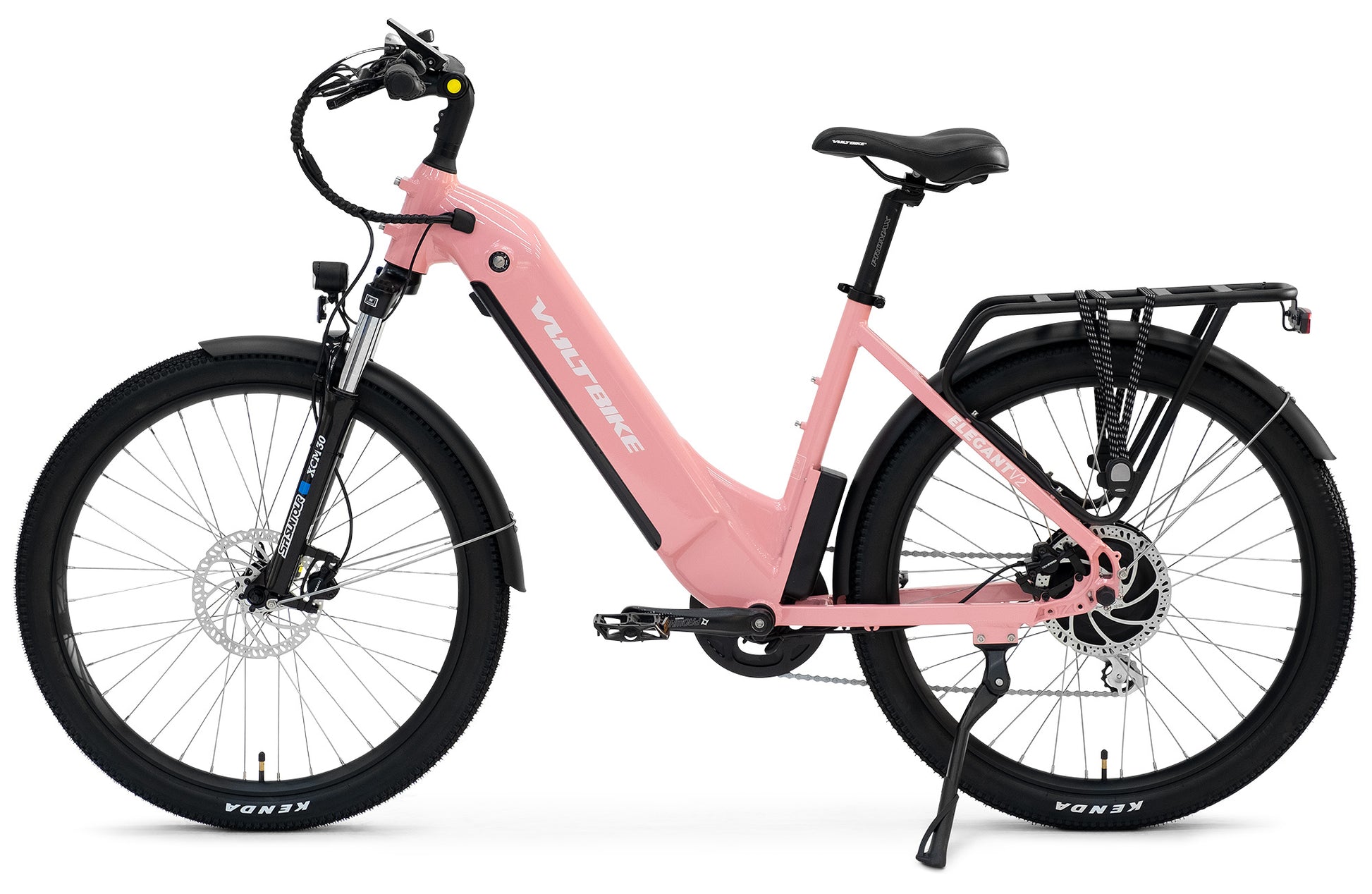

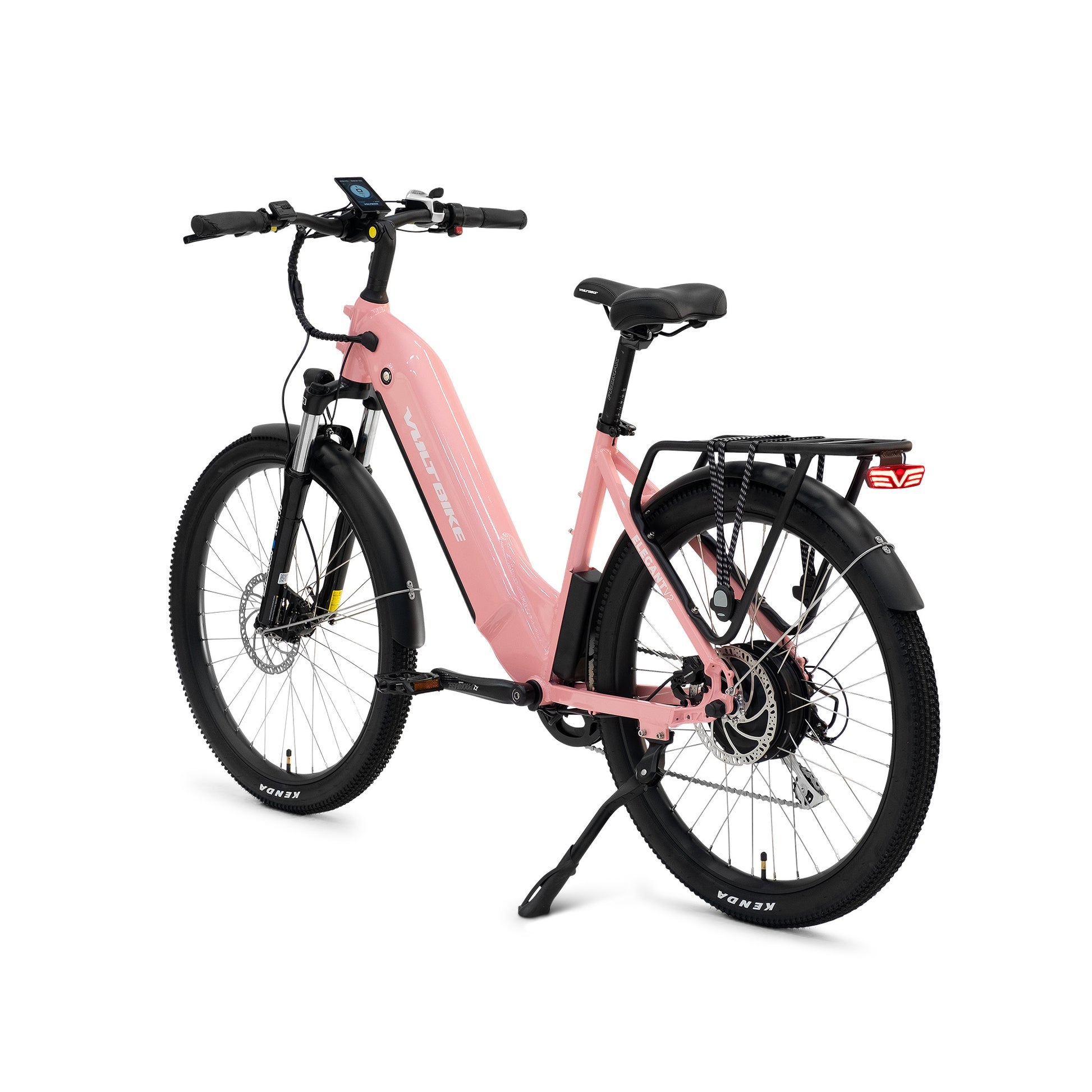

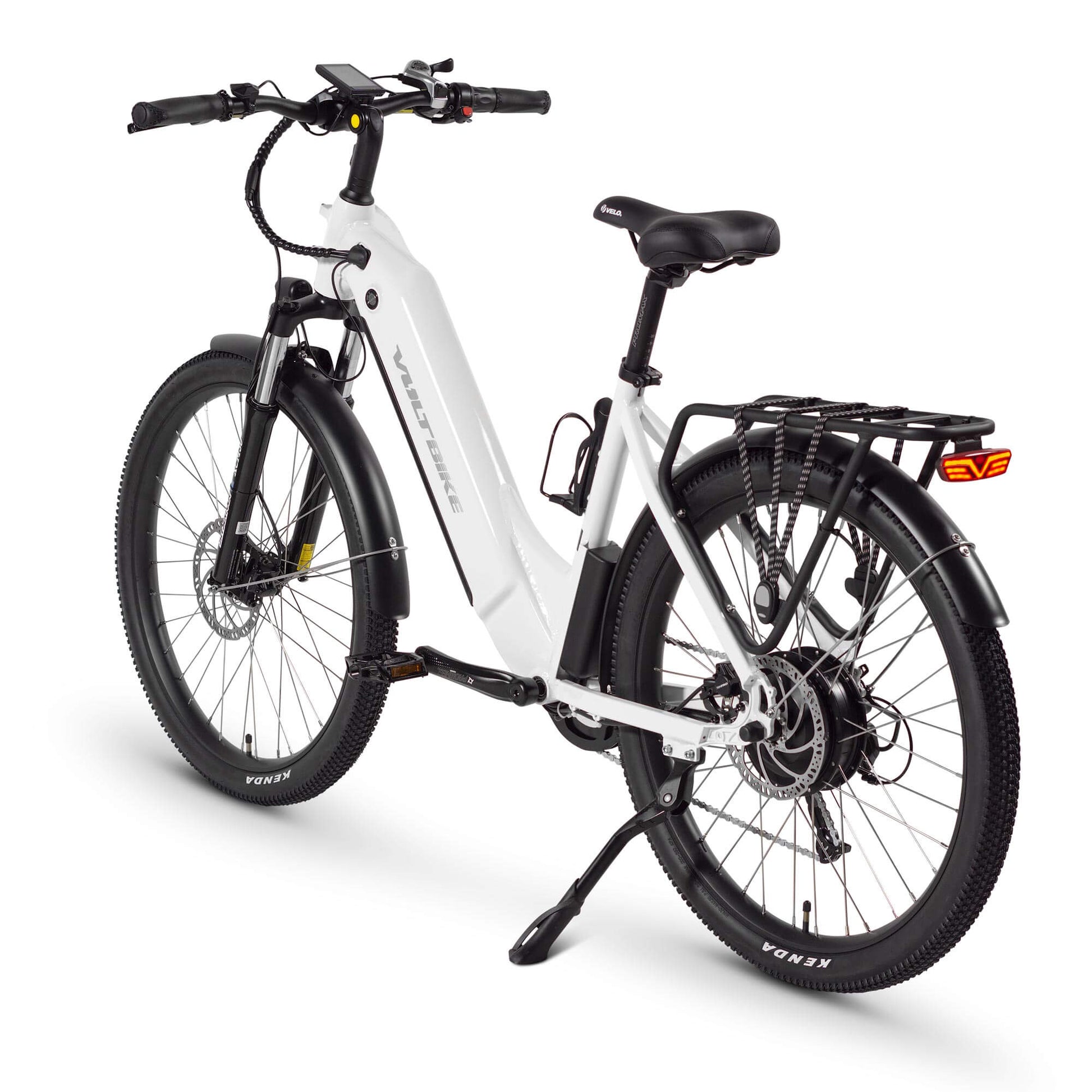

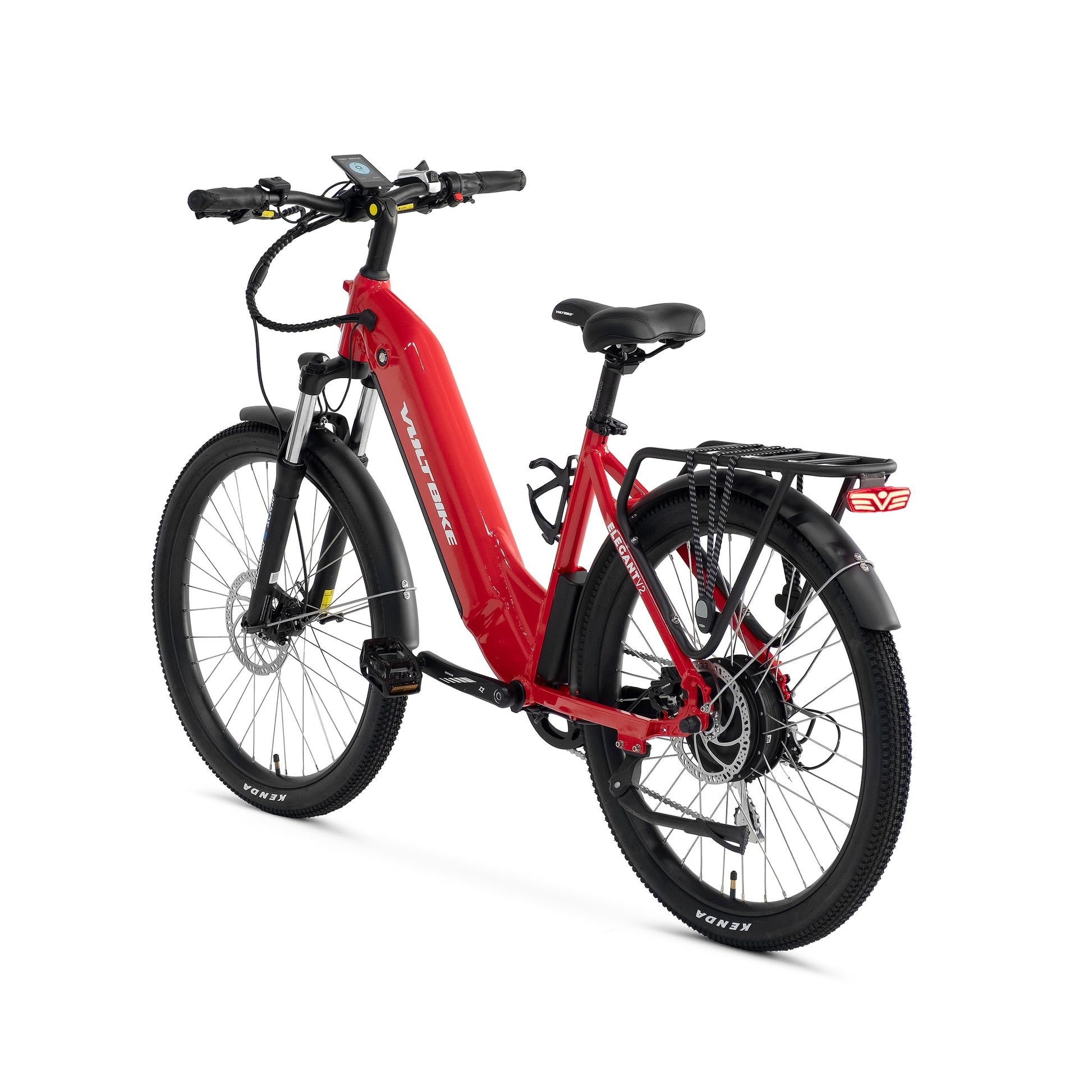

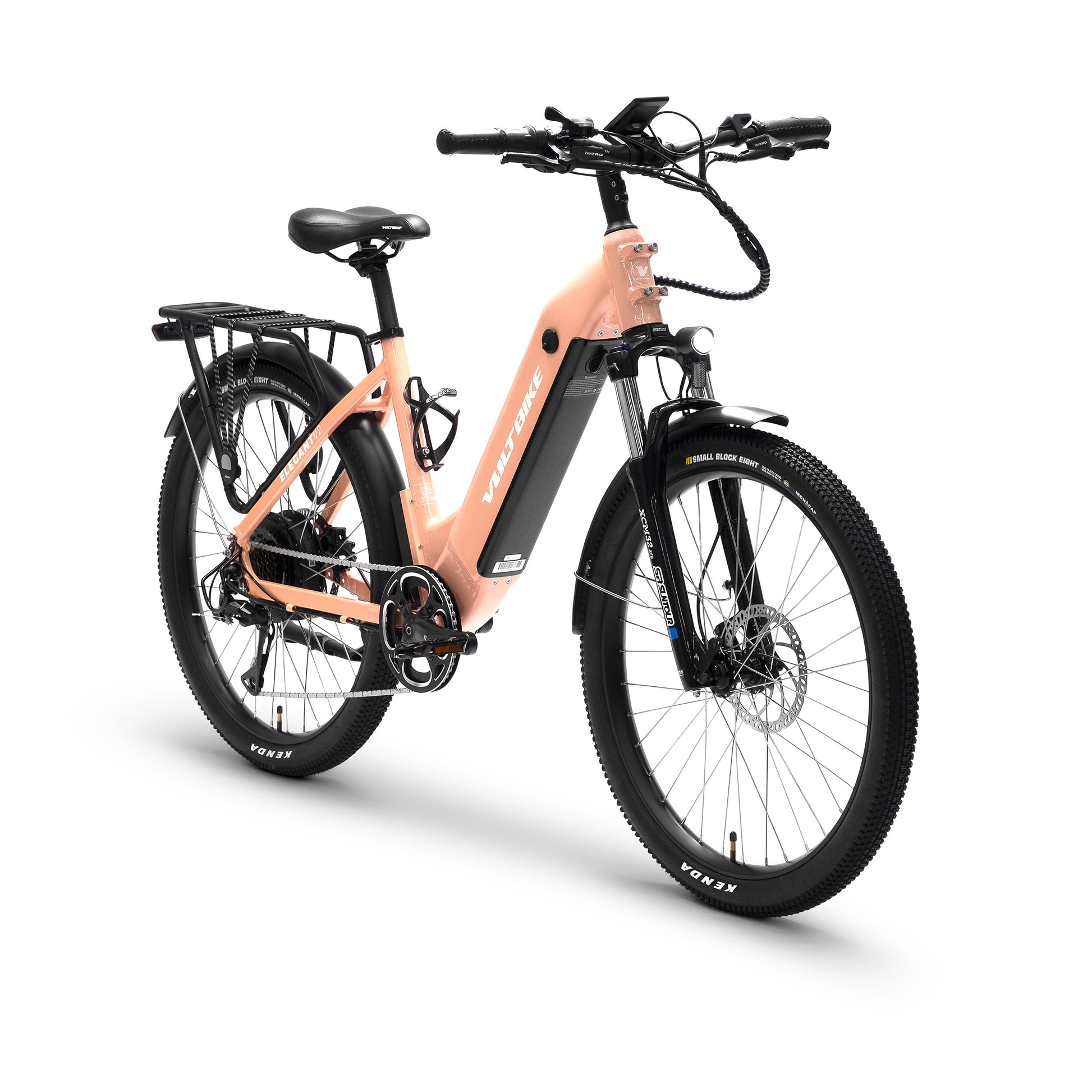

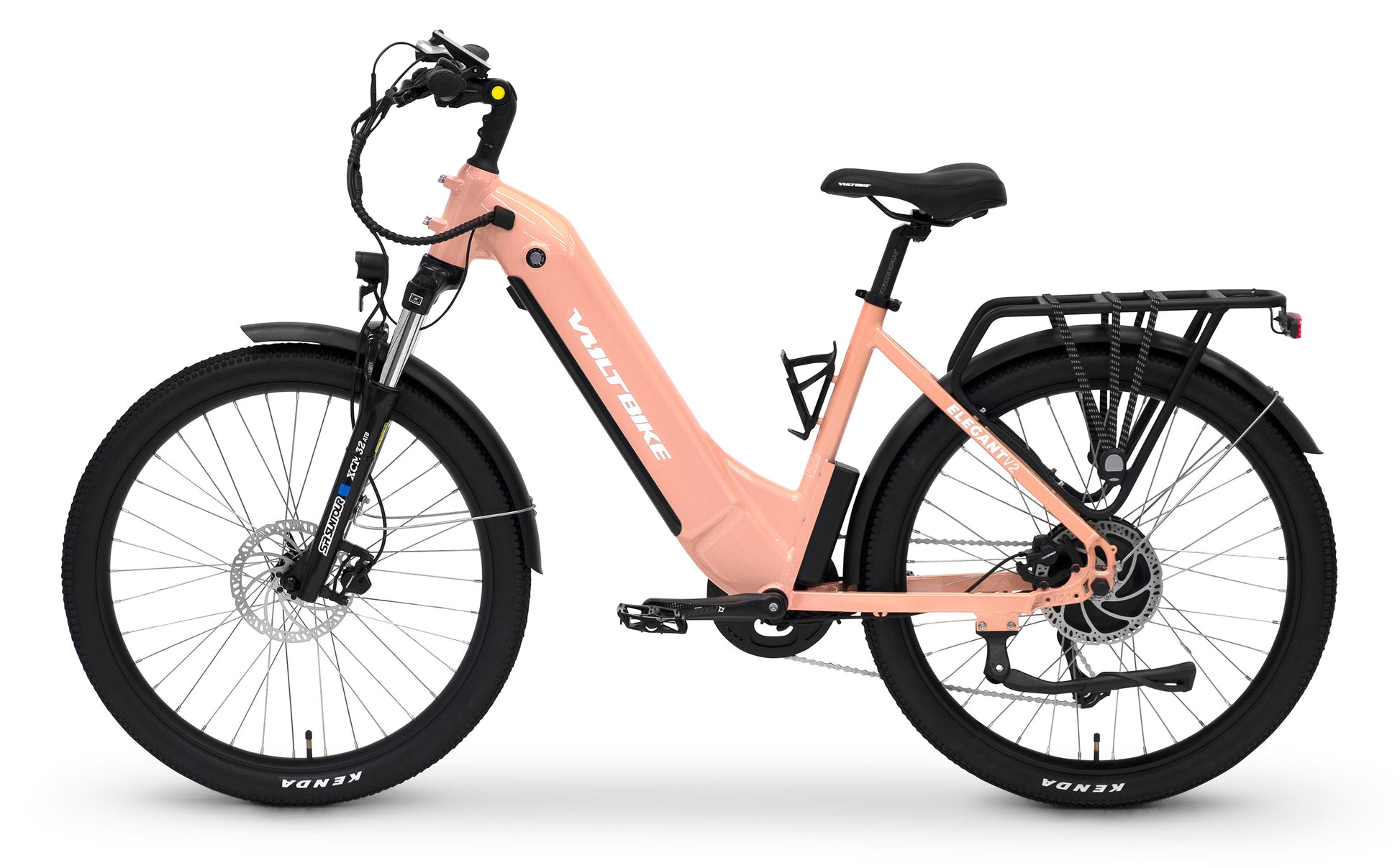

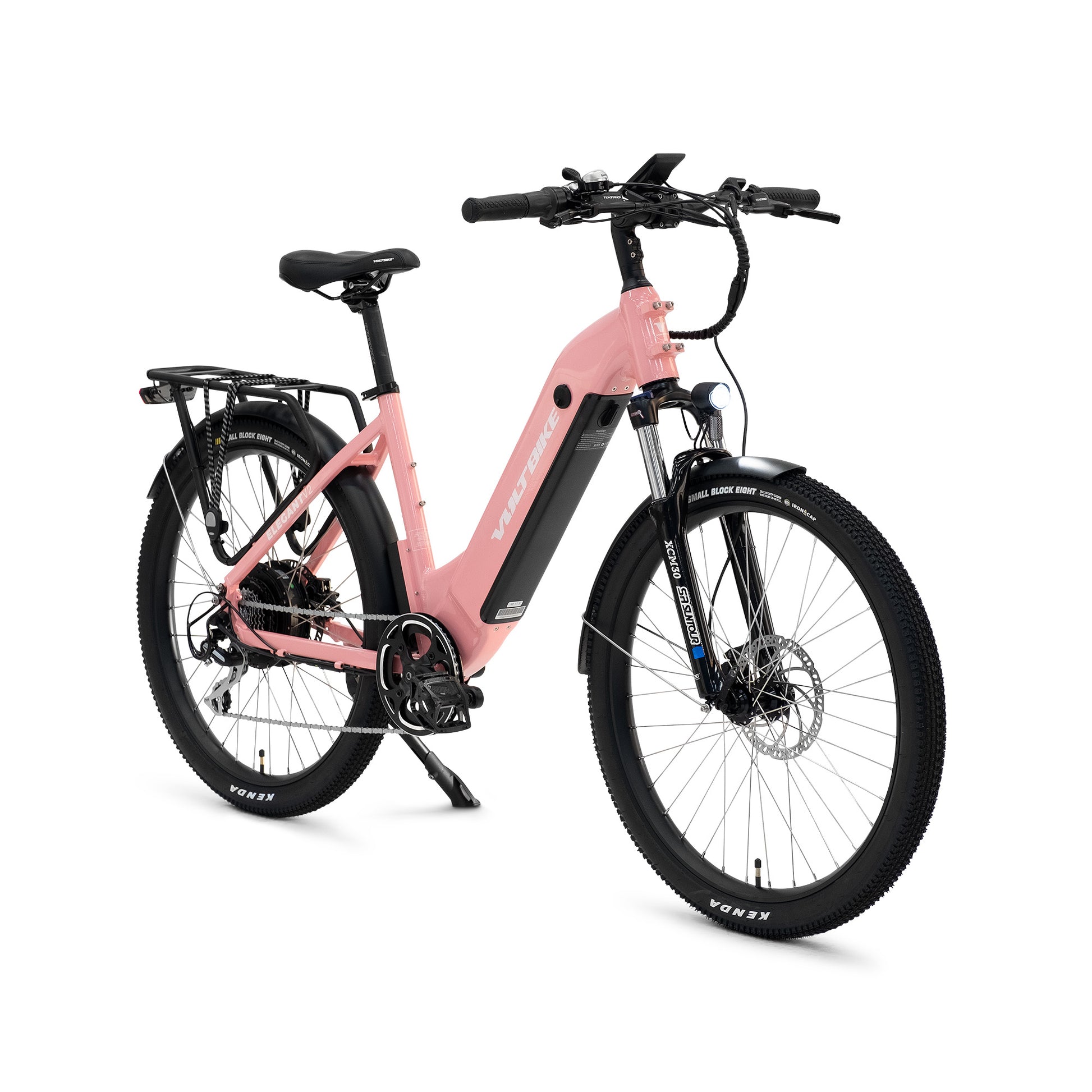

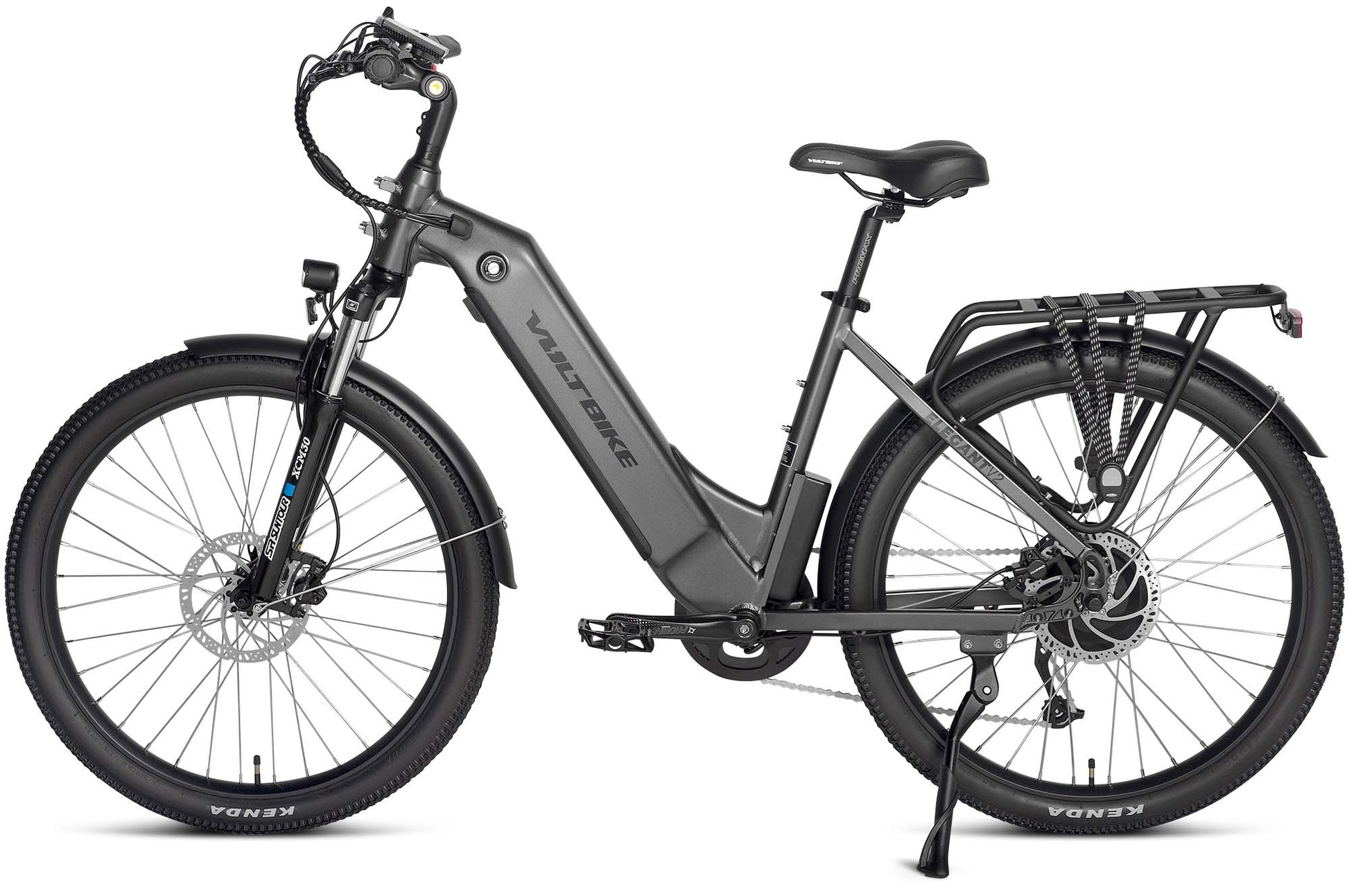

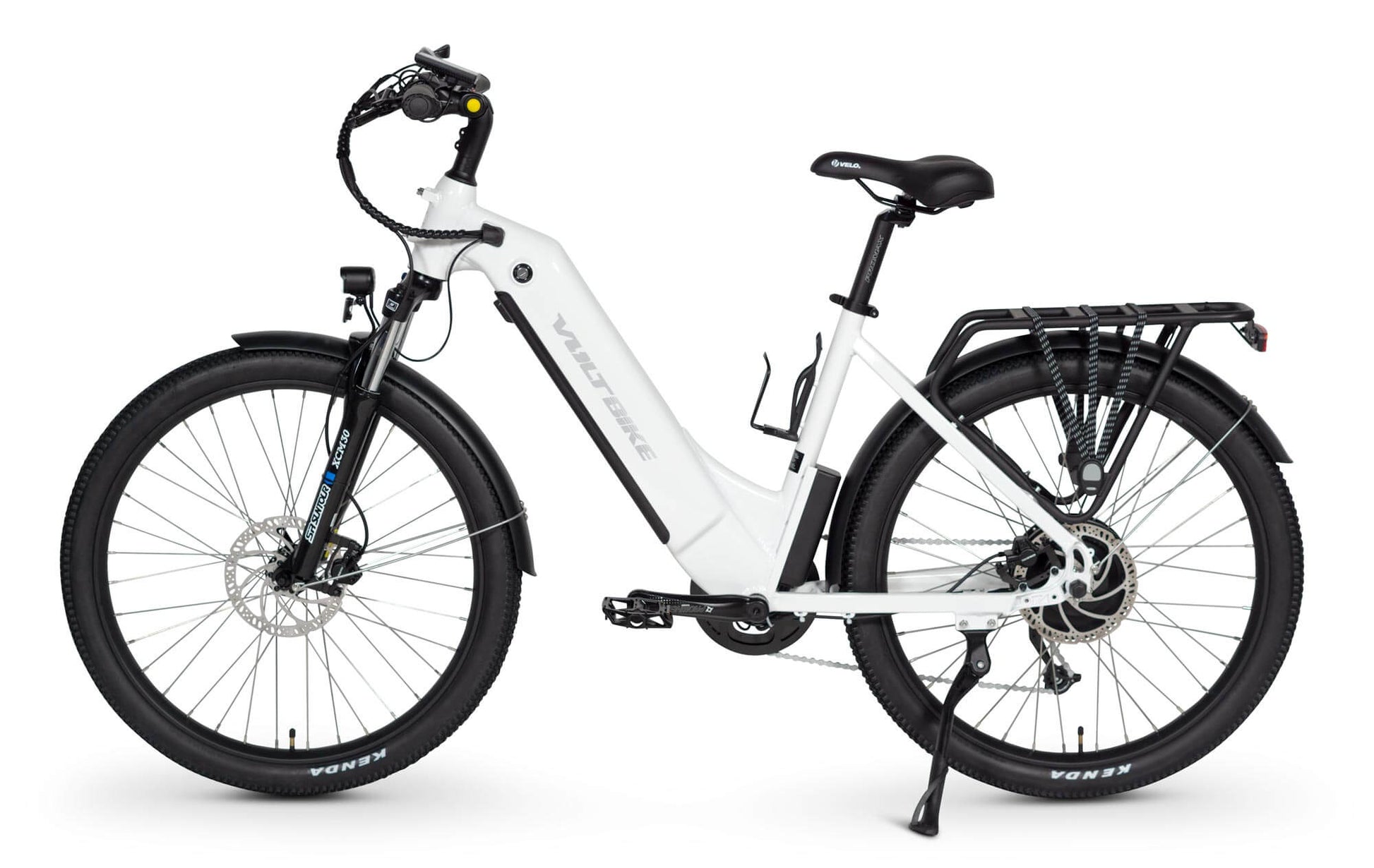

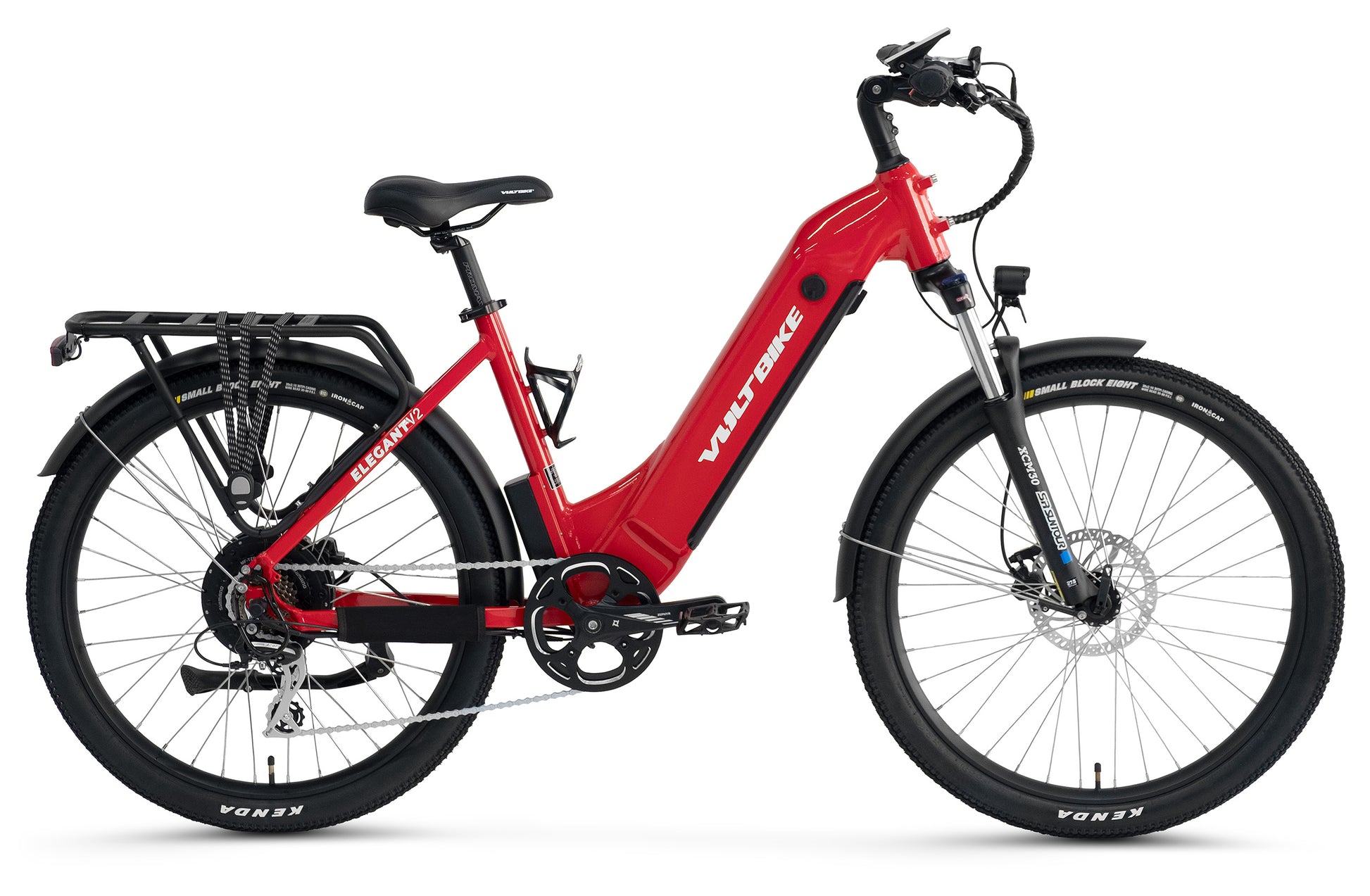

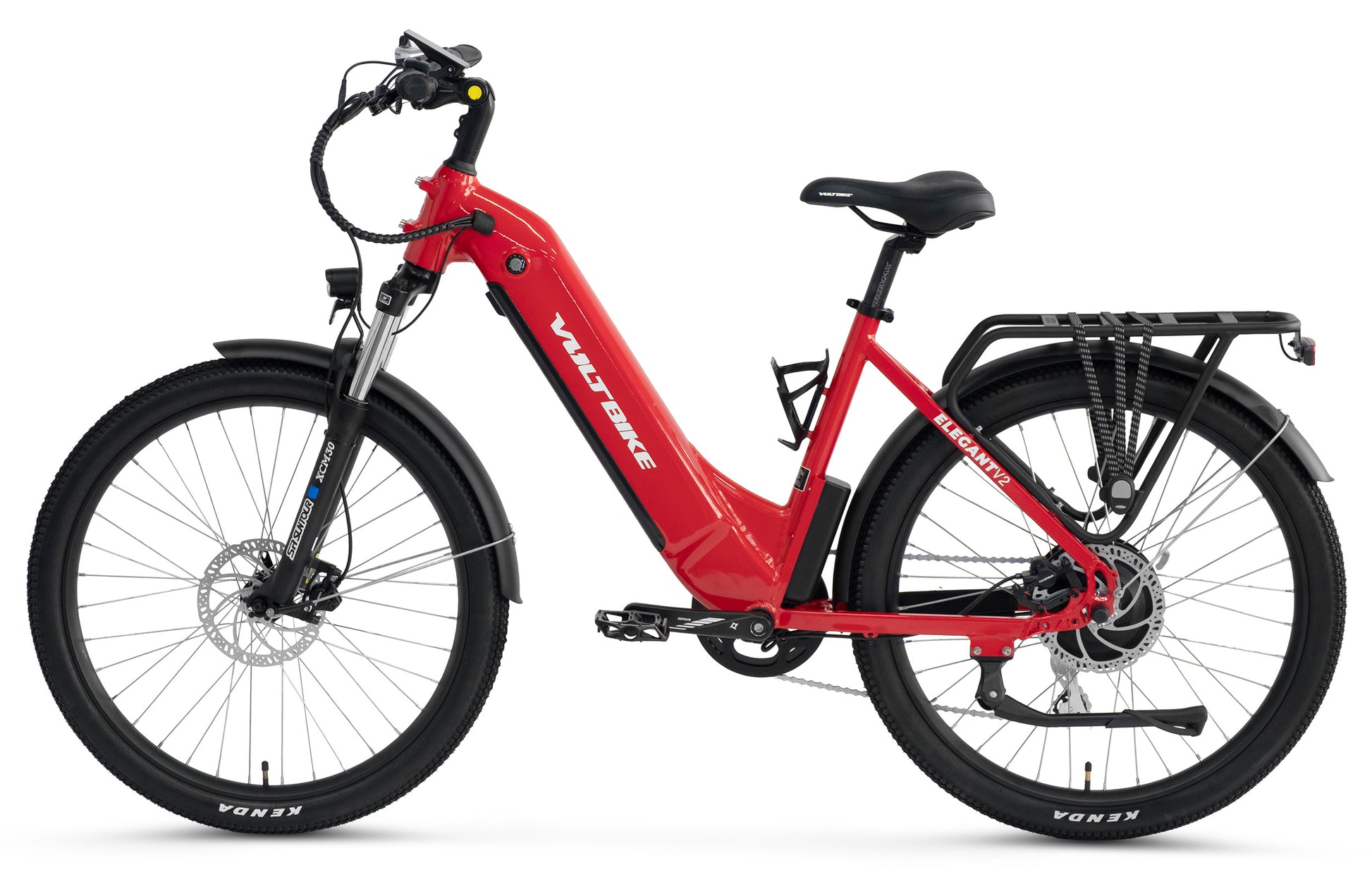

Elegant V2

Elegant V2

Elegant V2 has the head turning design with fully integrated battery and effortless step through frame. Thoughtfully designed with optimal beauty and selection of premium components. Offering long range battery and powerful rear hub motor.
In stock and ship on the next business day.
Regular price $2,049.00 CAD
Regular price $2,449.00 CAD Sale price $2,049.00 CAD
Sale Sold out
Bicycle Color
  • Free Shipping
  • 1 Year Warranty
View full details

Overview

500W Rated Power

The Elegant V2 is using a Bafang G07 series geared motor which provides 65 N.m. max torque and 500w rated power. The Bafang G07 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears.

Fully Integrated Battery

The Elegant V2 is using 48v 17.5Ah fully integrated battery pack with Samsung INR18650-35E cells. The integrated frame design gives you security in various weather conditions plus offering unmatched visual appearance. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.

Extra Smooth Ride

Voltbike Elegant V2 comes standard with lockout suspension Suntour XCT DS. Designed for quick release axles and bolt on axles. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weight is only 7lbs.

Sturdy Rear Rack

Standard for Elegant V2 is an aluminum rear rack which can fit any load with ease up to 50lbs. Mounted directly on the rack is LED rear taillight with brake light functionality.

Backlit Color Display

Large practical display located in the middle of the handlebar offers real time stats such as speed, pedal assist level, battery capacity, distance traveled and current load. You can also charge your cell phone through the built-in USB connector. New for the display is the lighting sensor which atomically activates your lights when it gets dark.

Hydraulic Stopping Power

Voltbike Elegant V2 is using Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.

Adjust Your Ride

Adjust your bike as per your need. No matter what your style of riding, VoltBike has a stem with the fit, performance and style you're looking. VoltBike is using stem Promax MA-570 with adjustable angle 35° - 145° and 108mm extension.

Simple Controls

Our redesigned cockpit includes large easy to read color LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.

Parts Included

Our bikes ship 95% assembled with everything you’ll need to get up and running, including:

Specifications

  • Weight 61.0 lb
  • Battery 48V Li-ion 17.5Ah Samsung (840Wh)
  • Battery Style Internal
  • Bottom Bracket Sealed cartridge Neco 910, 23.5mm + 120mm + 23.5mm
  • Brakes Hydraulic disc brakes front/rear Tektro Auriga HD-E500
  • Brake Lever Tektro with integrated bell
  • Chain KMC Rust Buster
  • Crankset Aluminum Alloy-6061 38T Crank, 170mm with Outer Guard
  • Derailleur Guard Rear Metal Derailleur Guard
  • Fork Suntour XCT DS suspension fork with preload adjuster
  • Frame Type Step-Through
  • Freewheel Cassette Sunrace M2 Freewheel Super-Low 7 Speed 13-34T
  • Handlebars PROMAX ALLUMINUM ALLOY 31.8mm*22.2mm*680mm, 9 degree
  • Hubset Alloy 6061 Electric Motor
  • Motor 48V 500W Bafang G070 Hub Motor
  • Motor Type Hub Motor
  • Pedals Wellgo M-248DU
  • Rear Derailleur Shimano Acera RD-410 7 speed direct rear derailleur
  • Rims 26" with 36 spokes
  • Seat Velo Plush VL-6142
  • Seat Post Promax SP-252 Aluminum 6061 Alloy, 30.4mm*350mm
  • Shifter Type Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed
  • Spokes Rear 13G, Front 13G
  • Stem Adjustable stem Promax MA-579 with extension 110mm. Adjustable angles 90° - 160°. Aluminum alloy.
  • Tires Kenda 26"x2.1"

Sizing

  • aFrame Size: 18"
  • bStand-over Height: 22"
  • cReach: 17"
  • dTop-tube Length: 22"
  • eHandlebar Height: 41.5"-43.5"
  • fSeat Height: 32"-39"
  • gWheel Size: ⌀26"x2"
  • hWheelbase: 44.5"
  • iLength: 69"
Elegant V2 sizing chart.

Customer Reviews

Based on 31 reviews
94%
(29)
6%
(2)
0%
(0)
0%
(0)
0%
(0)
M
Murray Bymoen
Great bike

Purchased two of the step thru Elegant V2 bikes about a month ago. Set up was very easy and only took a few minutes. Both bikes so far have been great.

C
Cliff
This was an excellent purchase

This is a very solid bike, incredibly easy and fast to assemble. Tough to beat the comfort and style of this bike. Lots of power, assist or throttle. Unbeatable value for dollars.

A
Andrew
A good choice

I've had my white step-through Elegant for a year and a half now and no complaints. I'm 5’8” and 79 but fairly active. I still have a city bike and an old mountain bike. I use it mainly as a substitute for my car for in town trips, shopping, bank, etc. I was surprised how much less car driving I do now although I don't use it in the winter. It's been really reliable and the range is huge. In the summer I take it to the cottage and ride it on back roads and some trails. I've had two minor mechanical issues. I needed to adjust the seat tilt and couldn't free the bolts. Voltbike sent me a new seat and post two days later - great customer service. Then a few weeks ago I had to replace the pedals. Other than that it has been trouble free. It's a joy to ride both on city roads and smooth trails and I haven't found a hill yet it won't climb.

P
Pam
Freedom

I am someone who lives with pain with arthritis from my lupus . I felt like I would not be able to enjoy the thing I loved the most; biking. But with my new electric bike I feel some freedom hitting the trails again. Thank you to VoltBike for getting my bike to me quickly .

B
Bobyjoe
Works Great

Nice bike, everything works as advertised.
